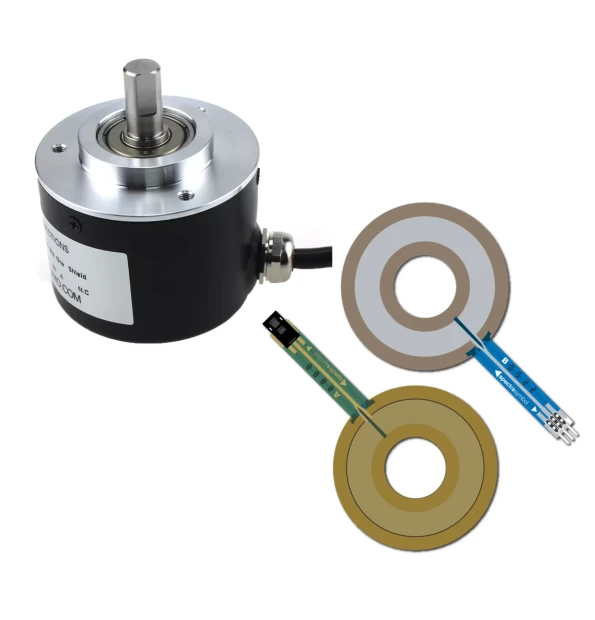

Encoder vs Potentiometer

Author: David Marriott, Spectra Symbol CEO

Can a Potentiometer be used as an alternative to an Encoder?

Yes, rotary or linear potentiometers can be used as alternatives to an encoder, but it depends on the specific application and requirements. Both potentiometers and encoders are used to measure position or displacement, but they function differently, and their suitability depends on factors like accuracy, resolution, durability, and environmental conditions.

Encoder vs Potentiometer: Key differences

Working Principle

Potentiometer: Measures position by varying resistance along a resistive track as a wiper moves. The output is typically an analog voltage proportional to the wiper’s position.
Encoder: Converts mechanical motion into a digital signal (either incremental or absolute), providing higher precision, resolution, and robust feedback for control systems.

Resolution and Precision

Encoder: Generally offers higher resolution, particularly optical or magnetic encoders, which can measure motion in very fine increments, often down to micrometer or nanometer ranges.
Potentiometer: Typically provides lower resolution compared to encoders. However, with proper signal conditioning, it can offer sufficient resolution for low-precision applications.

Output

Encoder: Produces digital signals, easily interfaced with digital systems for control, measurement, and feedback.
Potentiometer: Provides an analog output, which may require analog-to-digital conversion (ADC) for integration with digital systems.

Durability and Environmental Conditions

Encoder: Often more robust in harsh environments, including industrial settings, with versions designed to handle extreme temperatures, vibration, dust, and liquid exposure.
Potentiometer: Can be more susceptible to wear due to its contact-based mechanism. Membrane potentiometers may be less durable than traditional resistive potentiometers or encoders in challenging conditions.

Measurement Length

Encoder: Suitable for long measurements, typically up to 5 meters. However, the size of the encoder head may limit its effectiveness for very short measurements.
Potentiometer: Effective for measurements up to 1.5 meters and excels in short-distance applications, thanks to the customizable and compact design of its wipers.

Power Loss or Disconnection

Encoder: Requires resetting and re-zeroing after power loss or disconnection, as it does not retain its position without power.
Potentiometer: Maintains its position regardless of power cycling, allowing for immediate usability without recalibration.

Supporting Electronics

Encoder: High-resolution measurement at speed demands supporting electronics with an extremely high sample rate, which can increase system complexity.
Potentiometer: Provides virtually infinite resolution inherently. The actual resolution depends on the bit count of the ADC (Analog-to-Digital Converter), allowing for flexibility to meet the application’s specific needs.

Cost

Encoder: Can be more expensive, particularly for high-resolution models.
Potentiometer: Tends to be cheaper, making them attractive for applications where ultra-high precision is not necessary.

When to Use a Potentiometer Instead of an Encoder

A rotary or linear potentiometer could be used in situations where:

Lower resolution is acceptable. For instance, if precise position feedback is not critical (e.g., in basic position sensing or human interface devices).
Cost constraints make a potentiometer a more economical choice, especially for consumer-grade applications or simple measurement systems.
Simplicity is a priority. Potentiometers are easier to integrate into analog systems and are straightforward to use for simple applications.
Compact design is required, as some rotary and linear membrane potentiometers are very thin and can be embedded in smaller spaces.
Less ruggedness is acceptable. If the application doesn’t require extreme durability, a potentiometer may suffice.
Measuring Short Distances. Micro potentiometers can measure very short distances due to the small and customizable nature of wipers

Conclusion

In conclusion, a rotary potentiometer can be a practical alternative to an encoder, especially when cost, distance, simplicity, and compact form factor are key considerations. In addition, Spectra Symbol’s high-temperature potentiometers, like the HotPot, offer exceptional durability comparable to many encoders, even in challenging environments. These potentiometers maintain reliable performance while also being more affordable than encoder, making them ideal for applications where ultra-high precision is not critical but ruggedness and form factor are essential.

FAQ

Is a rotary encoder a potentiometer?

No, a rotary encoder and a potentiometer are different devices. A potentiometer measures position by varying resistance to produce an analog signal, while a rotary encoder converts motion into a digital signal for higher precision and resolution.

Can I use a rotary encoder as a potentiometer?

Maybe. While a rotary encoder can provide position or displacement information similar to a potentiometer, it produces a digital signal instead of an analog one. Depending on your system, additional components (like a digital-to-analog converter) may be required to mimic a potentiometer’s behavior.

How does a digital encoder differ from a potentiometer?

A digital encoder provides precise, high-resolution digital signals for position or motion tracking, while a potentiometer generates analog voltage proportional to position. Encoders are generally more robust and suitable for applications requiring accuracy, whereas potentiometers are simpler and more cost-effective for basic tasks.

When should I replace a potentiometer with an encoder?

Replace a potentiometer with an encoder when your application requires higher precision, longer durability in harsh conditions, or compatibility with digital systems. Encoders are ideal for industrial, robotics, and automation tasks where accurate and reliable feedback is essential.
